Pedestrian Footbridge

Contact Now* Send an Inquiry to this supplier.
or
Start Order * Name your price

Contact us TradeVerify

KUKJE ST Co.,Ltd.
[Korea]

Address
81, Dongsansaneopdanji-ro, Yeonmu-eup Nonsan-si Chungcheongnam-do
Phone
82-41-7322559
Contact name
Yejin Lee

Quick Information

  • Place of Origin: Korea
  • Model Number : KJ-FB15A On / KJ-FB15A Side / KJ-FB20A On / KJ-FB20A Side
  • :

Description

Pedestrian Footbridge
Footbridge is a footpath that is installed next to bridges or retaining walls. Also the product is designed to prevent any accidents as it divides spaces for cars and pedestrians each.
Our product has passed safety tests under the 8kN/m² load condition such as fatigue test, structure stability test and loading test.
For floor boards, we inserted reinforcing structure made of aluminum alloy into the boards so it provides rigidity and prevents torsional deformation caused by humidity.
Furthermore, thanks to using KUKJE ST's floor connectors, pedestrians don't have to worry about exposed screws on the footbridge.
There are two types of installation methods which are on-bridge installation and side-bridge installation allowing the product to be installed on any kinds of bridges.
[Description]
Footbridge is a footpath that is installed next to bridges or retaining walls. Also the product is designed to prevent any accidents as it divides spaces for cars and pedestrians each.
[Features]
• The product has passed safety tests under the 8kN/m² load condition such as fatigue test, structure stability test and loading test.
• There are two types of installation methods which are on-bridge installation and side-bridge installation allowing the product to be installed on any kinds of bridges.
• Thanks to using KUKJE ST's floor connectors, pedestrians don't have to worry about exposed screws on the footbridge.
• Patent 10-1502502 : Inserting reinforcing structure (AL) into wood-plastic composite to prevent torsional deformation caused by humidity.
[Specification]
• Model : KJ-FB15A On / KJ-FB15A Side / KJ-FB20A On / KJ-FB20A Side
• Size: W 1500 ~ 2500mm
• Material: AC7A, 6061-T6, 6063-T5
• Weight: 130 kg/m
• Country of Origin: Republic of Korea / HS Code: 761090
KJ-FB15A On KJ-FB15A Side
KJ-FB20A On KJ-FB20A Side


Product Image

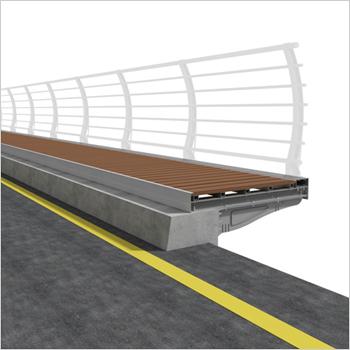

  • 1Pedestrian Footbridge image 1

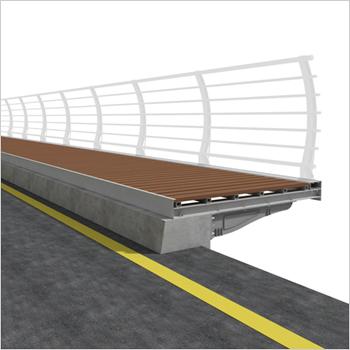

  • 2 Pedestrian Footbridge image 2

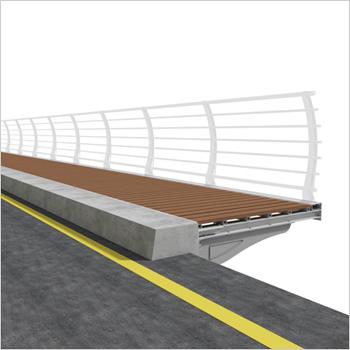

  • 3 Pedestrian Footbridge image 3

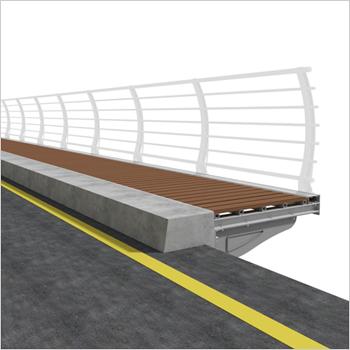

  • 4 Pedestrian Footbridge image 4
  • 5 Pedestrian Footbridge image 5
